3D Curved Residential Play Area Design 25.9 × 8.3 m

Design views

Top view of a long residential play area with a curved boundary, circular swing zone and central slide playset

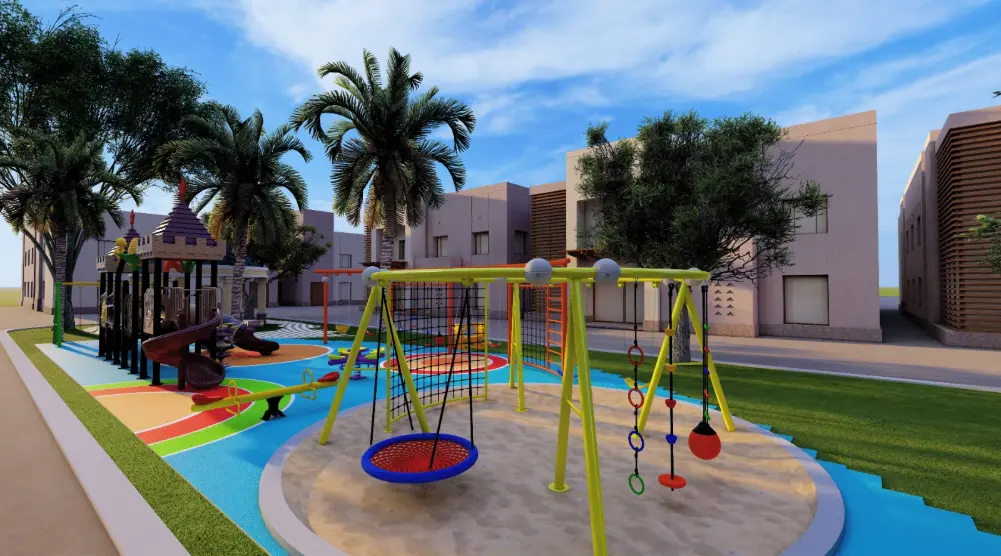

Circular swing frame with a basket seat and suspended play elements beside castle-style play towers

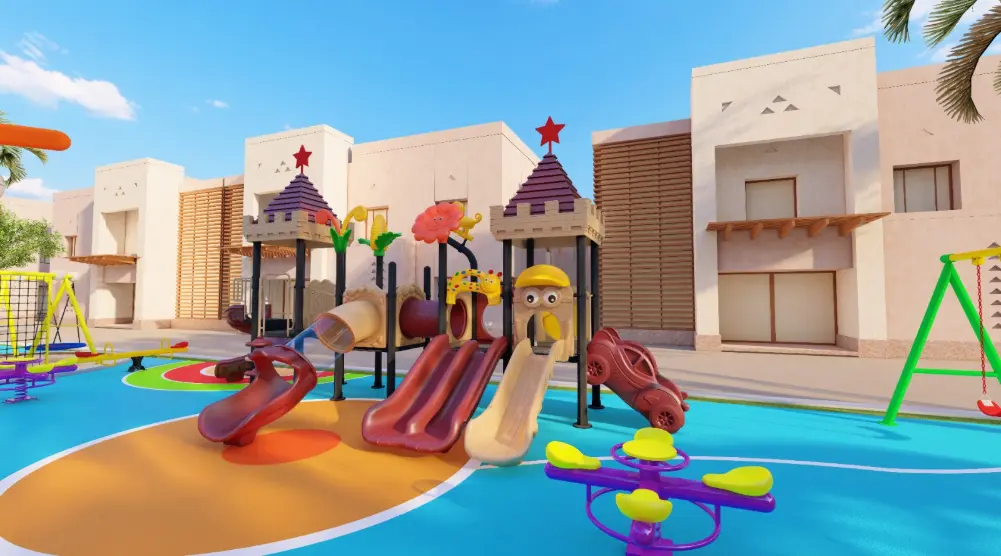

Castle-style play towers with red and beige slides beside a purple and yellow spring seesaw

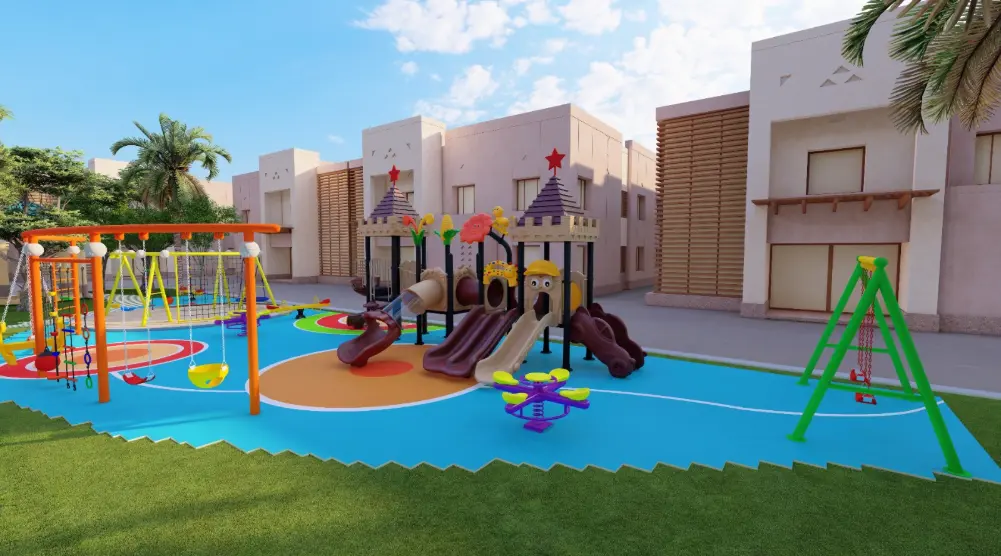

Wide view of a residential play area with castle towers, slides, an orange climbing frame and a green swing set

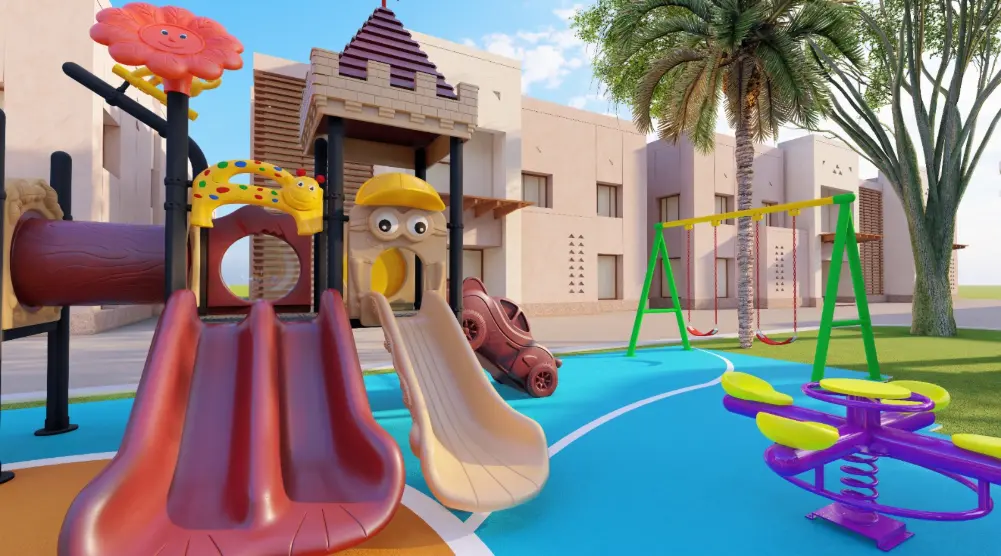

Close view of a red double slide and beige slide beneath a castle-style play tower

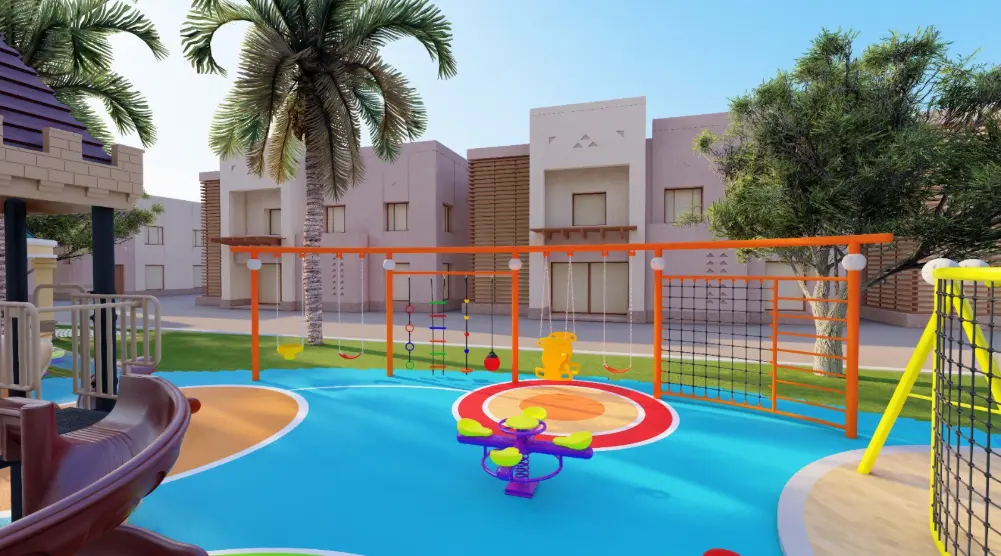

Orange climbing course with rope nets and hanging elements beside circular floor patterns and a spring seesaw

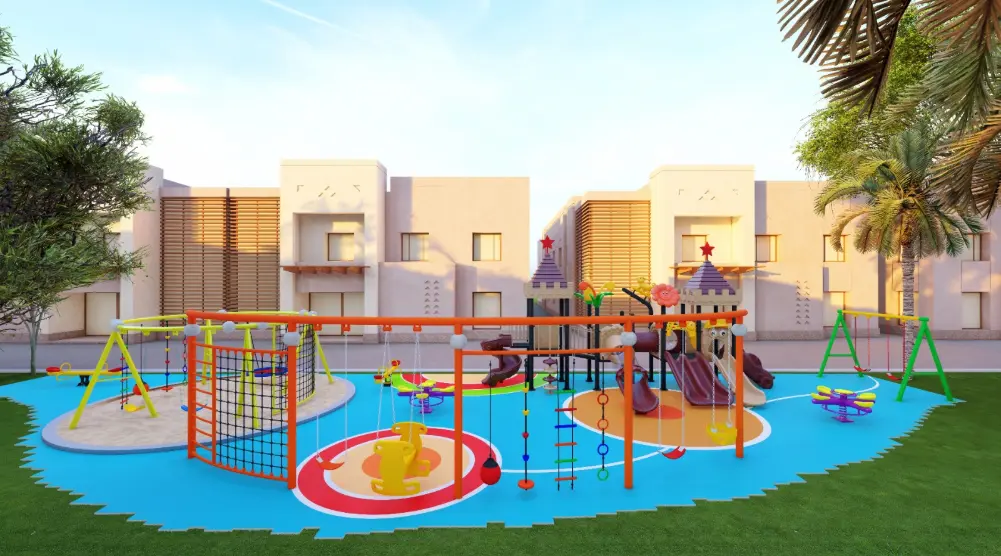

Front view of an orange rope climbing frame with castle slides, swings and colourful blue surfacing behind it

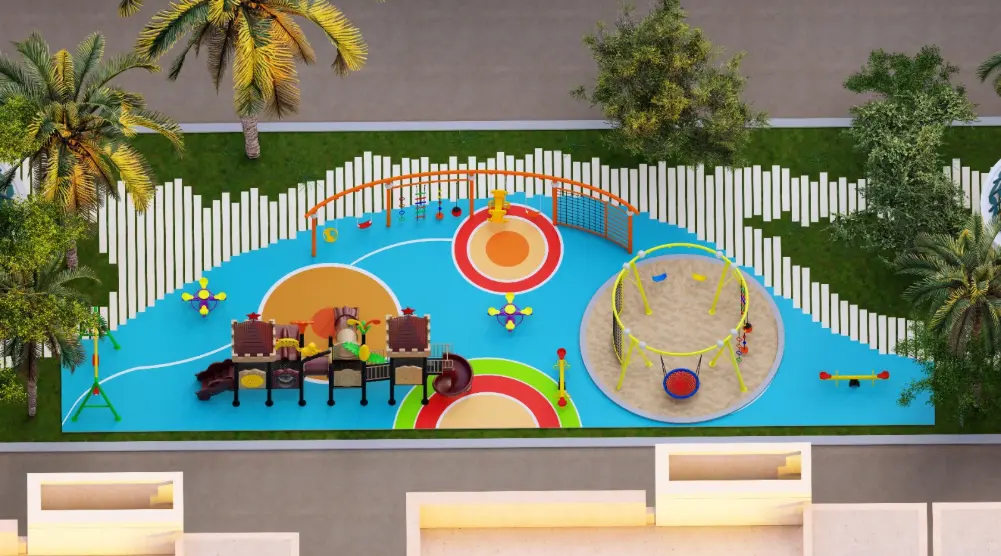

Aerial view of a curved play area with castle towers, a circular swing frame, rope climbing activities and a white fence

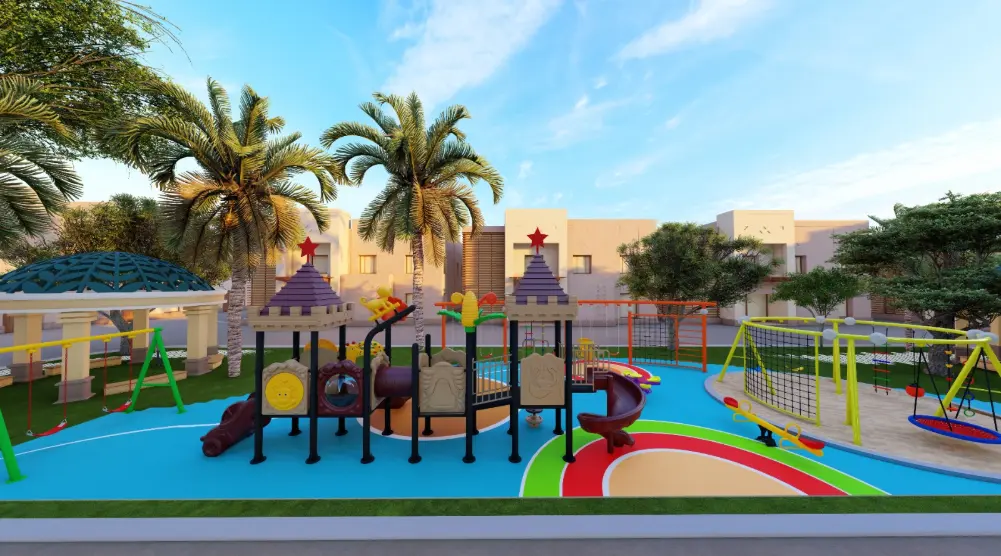

Rear view of connected castle-style play towers with activity panels, slides and a circular swing frame nearby

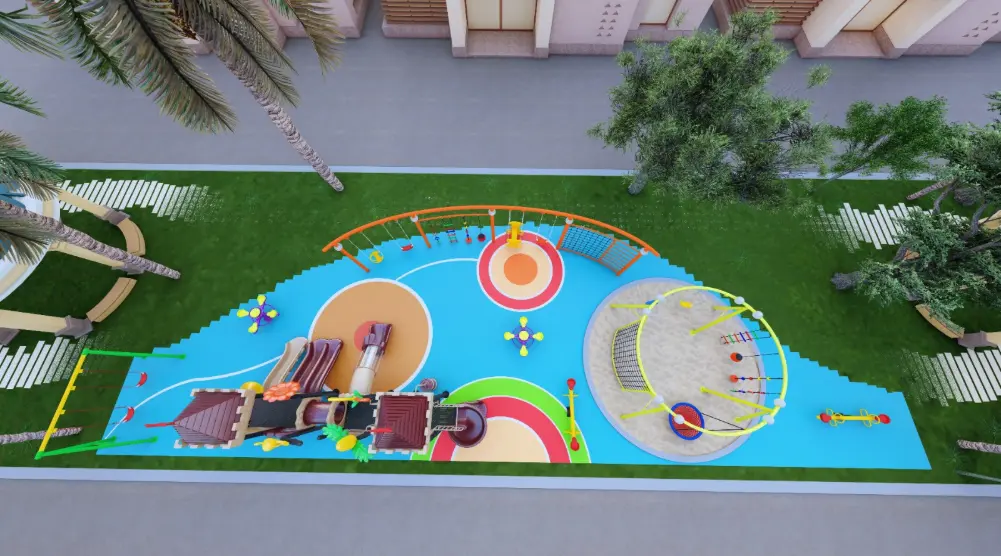

Elevated overview of an irregular residential play area with slides, a circular swing frame and an orange climbing course
1 / 10

Top view of a long residential play area with a curved boundary, circular swing zone and central slide playset

Design specifications

  • Plot shapeIrregular
  • Dimensions25.9 × 8.3 m
  • Area215 m²
  • Views10

About this design

This is a 3D playground design for a irregular plot of 25.9 × 8.3 m, about 215 m². The Garden Links team prepared it as a realistic concept that shows the layout of the equipment, circulation paths and the safety zone around each item before construction starts. It includes 10 views: a top plan and 3D perspectives.

The layout suits similar spaces such as a school, shopping mall or neighbourhood park. Equipment types, colours and EPDM rubber safety flooring can be adjusted to the age group and budget, and the build follows the safety clearances and standards applied in Saudi Arabia.

Want this design, or one sized for your plot?

Send us your dimensions on WhatsApp and we reply with a 3D concept and a quote.Get a quote on WhatsApp
