Courtyard Soft Play Design 19 × 6 m

Design views

Top view of a 19 × 6 m courtyard soft play layout with a ball pit, netted structure, rockers and small slides

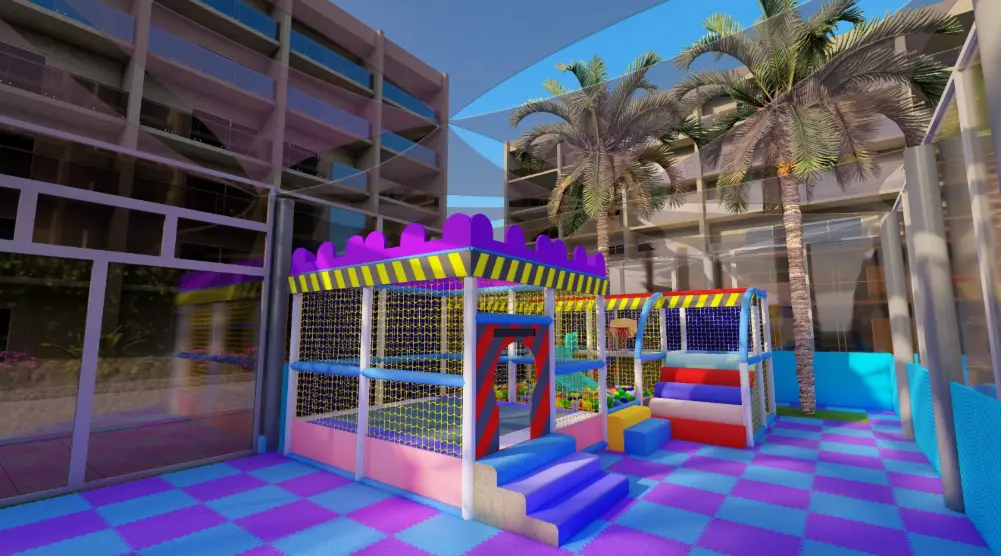

Netted soft play structure with padded entrance steps and colourful climbing features in a courtyard

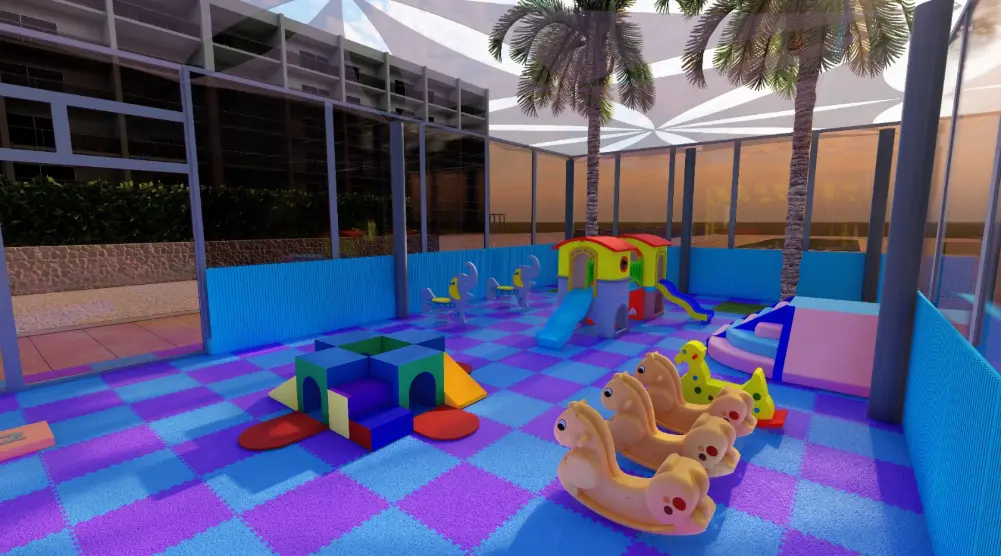

Courtyard play area with animal rockers, foam blocks, small slides and blue and purple flooring

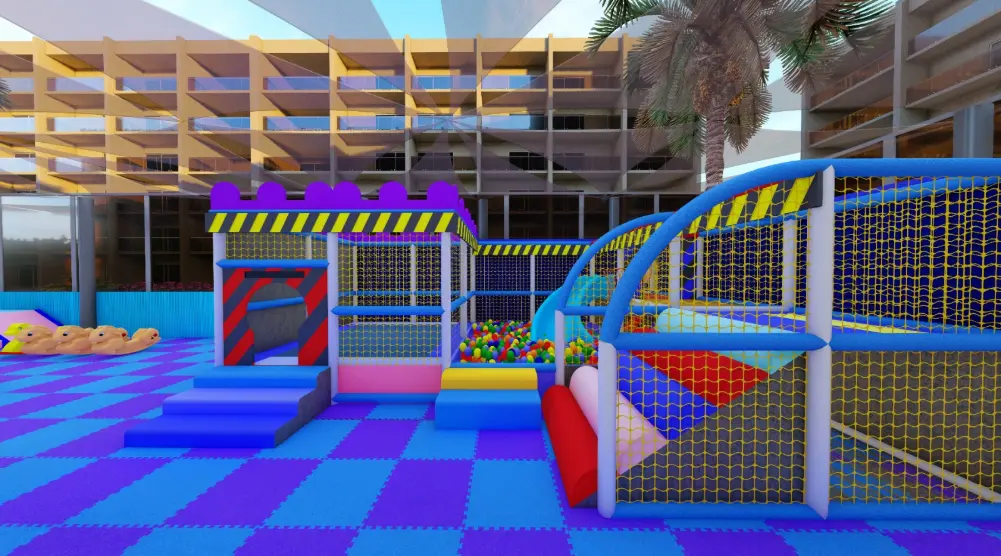

Side view of a netted play structure with colourful padded ramps, entrance steps and an adjoining ball pit

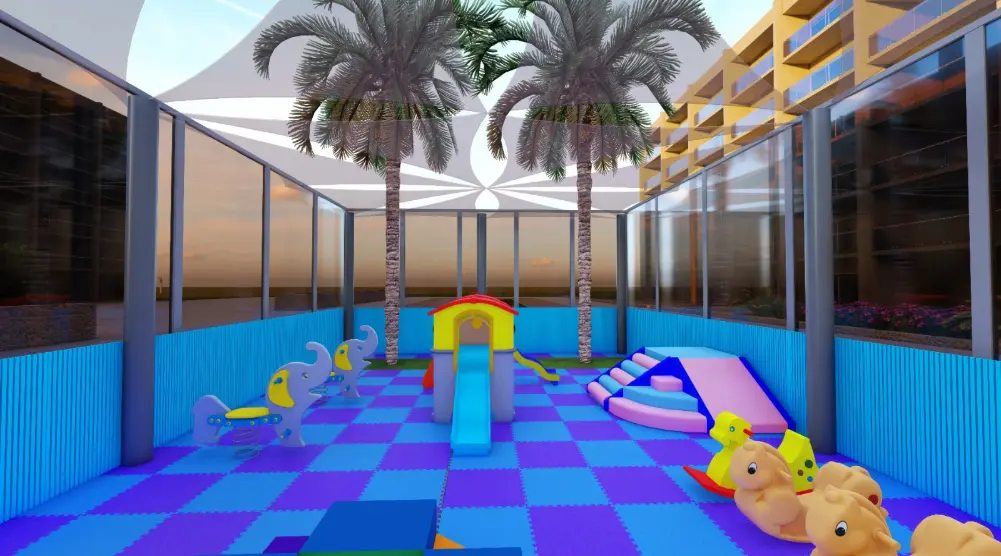

Small blue slide, animal rockers and pastel foam steps in a shaded courtyard play area

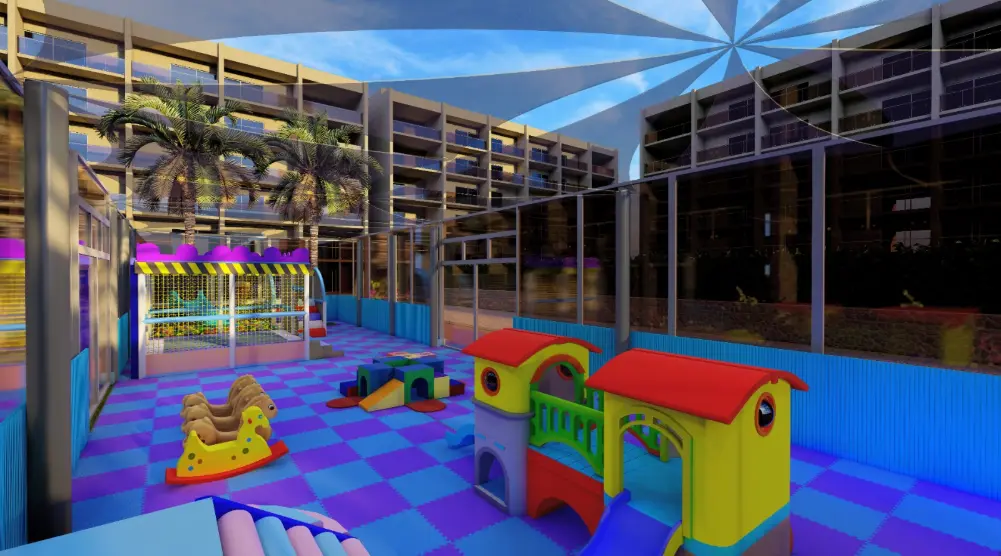

Colourful playhouses and rocking toys with a netted soft play structure at the opposite end of a courtyard

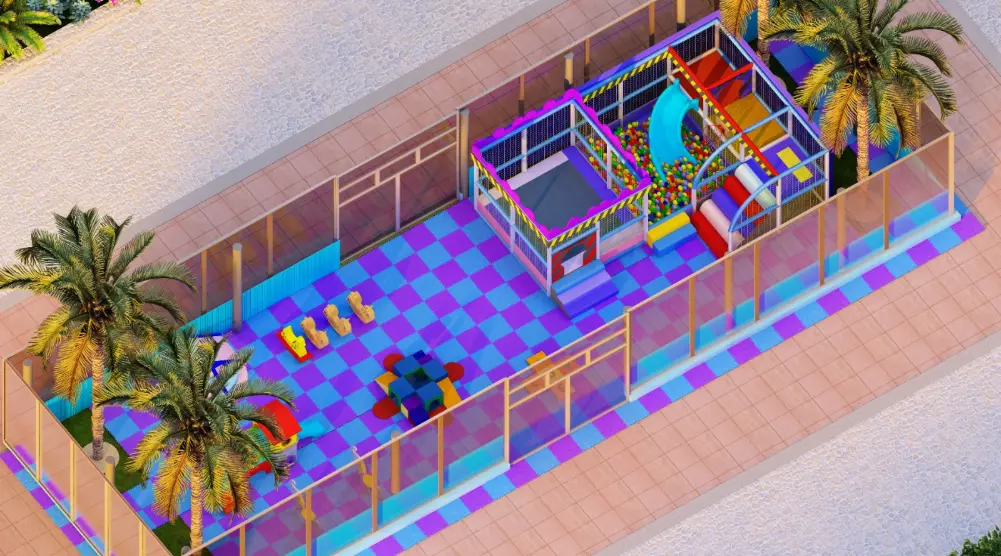

Aerial view of a narrow courtyard with a netted soft play structure, ball pit and smaller play activities

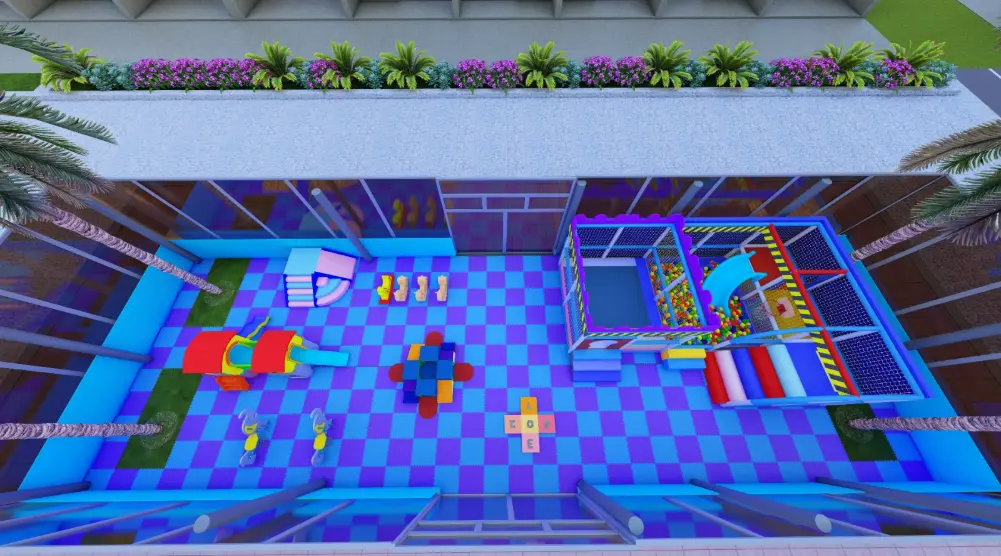

Elevated view of a courtyard soft play area with checkerboard flooring, playhouses, slides and a netted ball pit zone

1 / 8

Top view of a 19 × 6 m courtyard soft play layout with a ball pit, netted structure, rockers and small slides

Design specifications

Plot shapeRectangular
Dimensions19 × 6 m
Area114 m²
Views8

About this design

This is a 3D playground design for a rectangular plot of 19 × 6 m, about 114 m². The Garden Links team prepared it as a realistic concept that shows the layout of the equipment, circulation paths and the safety zone around each item before construction starts. It includes 8 views: a top plan and 3D perspectives.

The layout suits similar spaces such as a kindergarten, residential compound or indoor play hall. Equipment types, colours and EPDM rubber safety flooring can be adjusted to the age group and budget, and the build follows the safety clearances and standards applied in Saudi Arabia.

Want this design, or one sized for your plot?

Send us your dimensions on WhatsApp and we reply with a 3D concept and a quote.Get a quote on WhatsApp
